SCD41 CO2 Sensor

The Sensirion SCD41 measures real CO2 with a photoacoustic NDIR cell, not an estimate derived from a gas resistance. It also reports temperature and humidity. This example uses the Adafruit SCD41 breakout (#5190) (I2C address 0x62, Qwiic connector on board). Its 0x62 address does not clash with the onboard HDC1080 at 0x40.

If you only need an air-quality trend, the BME680 is cheaper. Reach for the SCD41 when you want an actual ppm number you can trust, for example to drive ventilation.

Quick facts
I2C address	0x62 (fixed)
I2C max frequency	100 kHz (hard datasheet limit)
Framework	Any (arduino or esp-idf)
Typical current	~17 mA average at a 5 s measurement rate

The 100 kHz limit is the one number that bites people. It is covered in Bus speed below.

Add it to your config

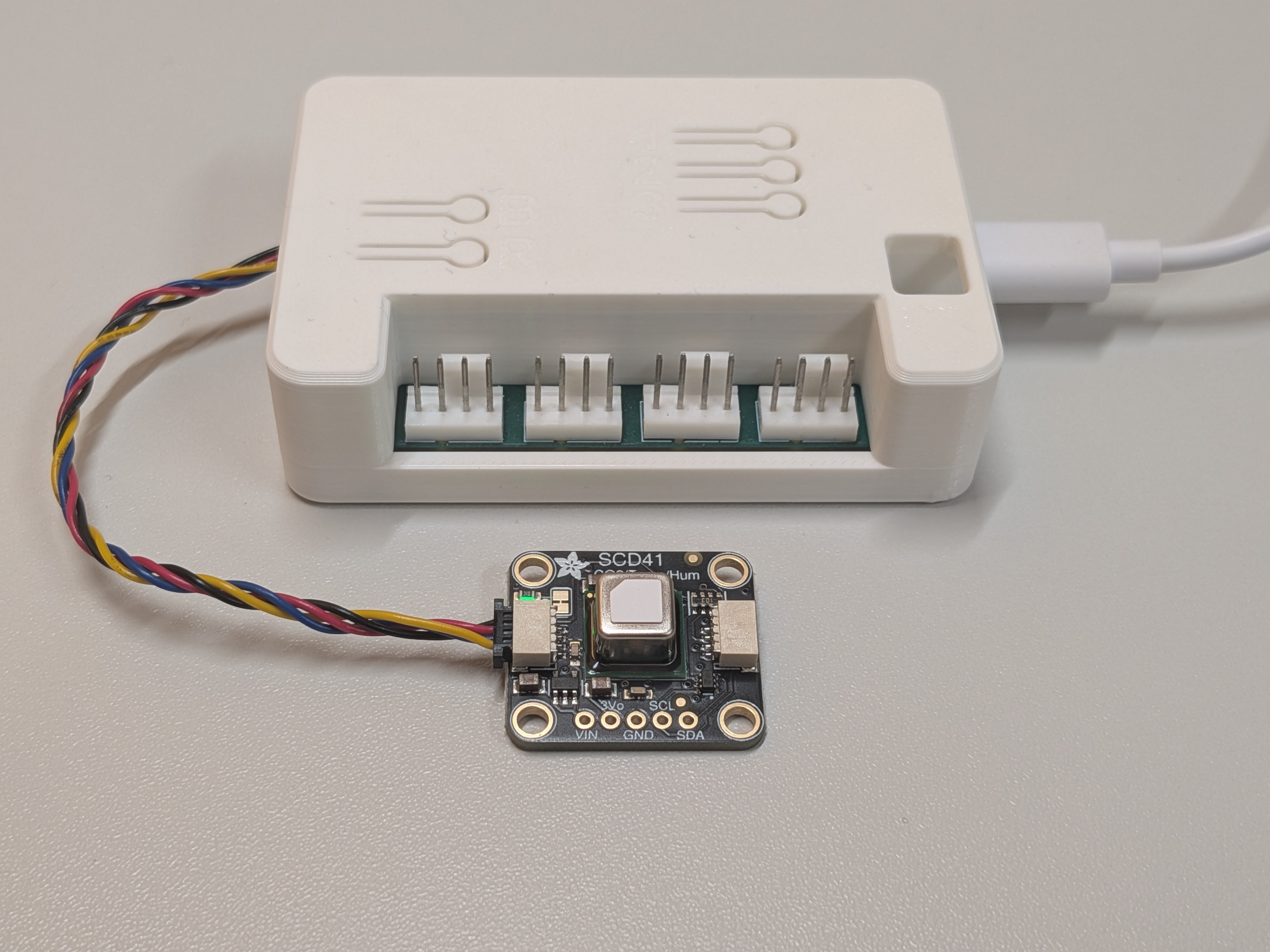

Plug the sensor into the Qwiic connector, then include the module as a package:

packages:
  hardware: ...      # your hardware-rev-*.yaml
  scd41:
    url: https://github.com/zeroflow/wifi-fancontroller
    ref: main
    files:
      - modules/scd41.yaml

That is enough to bring up all three readings. Nothing else is required for a first boot. The two things you will most likely want to tune afterwards, the temperature offset and CO2 calibration, each have their own section below.

What you get

Entity	Unit	Notes
CO2	ppm	The real measurement. Lightly median-filtered to drop single-sample spikes.
SCD41 Temperature	°C	Reads high from self-heating. Correct it with scd41_temperature_offset.
SCD41 Humidity	%	Relative humidity, derived on the same offset as the temperature.

Why “SCD41 Temperature” and not “Temperature”

The onboard HDC1080 already owns the entity names “Temperature” and “Humidity”. If this module used the same names, you would get two entities fighting over one name in Home Assistant. So its temperature and humidity are prefixed with scd41_name (default SCD41). CO2 is unique to this sensor, so it keeps the plain name “CO2”.

This is a general rule for every expansion module, not something specific to the SCD41: an add-on that duplicates a measurement the board already makes must namespace its entities. You end up with two temperature readings, one at the board (HDC1080) and one wherever the SCD41 sits. That is expected, not a fault.

Bus speed: the 100 kHz rule

One rule governs a shared I2C bus: the slowest device on the bus sets the ceiling. For the SCD41 that ceiling is a hard 100 kHz.

The shared bus (bus_a) runs at its 50 kHz default, so the SCD41 works out of the box and this module does not touch the bus speed. You only have to think about it when you combine devices:

Device	I2C max	Comment
HDC1080 (onboard)	400 kHz	Not a constraint
SCD41	100 kHz	Hard datasheet limit
SSD1306 OLED	400 kHz	Works at 100 kHz, just refreshes more slowly

So the collision to know about is SCD41 + OLED. The OLED page recommends raising the bus to 400 kHz for a smooth screen. You cannot do that with an SCD41 on the bus. Keep the bus at 100 kHz or below and both work; the display simply refreshes slower. Do it the other way around and the display is happy while the sensor stops working.

Above 100 kHz the SCD41 does not fail cleanly

Overclock the bus and the SCD41 does not throw one obvious error. It returns CRC failures, sporadically missing readings, and “communication failed” lines in the log. It looks exactly like a loose cable, which sends people hunting for a wiring fault that is not there. If your SCD41 readings are flaky, check the bus frequency first.

Open point

Whether 100 kHz feels “fast enough” for a 128x64 OLED depends on your display’s update interval and has not been measured on this board. If you run the OLED and SCD41 together, treat the refresh rate as something to try, not a settled number.

CO2 calibration: ASC vs FRC

This is where the support tickets come from. The SCD41 has two calibration mechanisms and they pull in opposite directions.

Automatic Self-Calibration (ASC)

ASC assumes that the lowest CO2 the sensor saw over the last several days was fresh outdoor air at ~400 ppm, and quietly re-zeros to that assumption. The module ships with ASC on (scd41_asc: "true"), because that is the safe default for someone who plugs the sensor into a normally-ventilated room.

ASC is probably wrong for a fan controller

That assumption is a trap for the typical fancontroller install. ASC only stays accurate if the sensor breathes real ~400 ppm outdoor air regularly (rule of thumb: about 1 hour a day over roughly a week). A sensor sealed in a rack or a permanently closed enclosure never sees that baseline, so ASC actively drifts the reading worse over time.

If the SCD41 lives in a closed box, turn ASC off and calibrate it by hand:

substitutions:
  scd41_asc: "false"

This is deliberately against the module default. The default is safe for the naive first-time user; your enclosure is the case where you should override it.

Forced Recalibration (FRC)

FRC sets the sensor straight against a known reference. The order of operations is the part people get wrong:

1. Put the sensor in its final location and let it run in periodic mode for at least 3 minutes. Calibrate any sooner and you calibrate noise.
2. Establish your reference CO2:
   • Fresh outdoor air is about 420 ppm as of 2026 (it is not 400 anymore, and the number keeps rising, so date whatever value you use).
   • Or read a co-located, already-calibrated CO2 meter.
3. Send the reference value to the sensor.

ESPHome exposes this as the scd4x.perform_forced_calibration action. On its own that is not usable; you need something to trigger it. Drop this button into your own config and press it from Home Assistant once the sensor has settled:

button:
  - platform: template
    name: "SCD41 Calibrate to 420 ppm"
    entity_category: config
    on_press:
      - scd4x.perform_forced_calibration:
          value: 420          # your reference ppm
          id: scd41           # matches scd41_id

Calibration lives in the sensor, not in your config

FRC and ASC both write to non-volatile memory inside the SCD41. It survives a reflash and reboots. It is also lost if you swap the physical sensor: a replacement chip starts uncalibrated and needs its own FRC.

Temperature offset: you have to measure it

The default scd41_temperature_offset is 4.0 °C, which is a placeholder, not a value measured on this board. The sensor self-heats, so its raw temperature reads high, and the offset subtracts that. The reported humidity is derived from the same corrected temperature, so getting the offset right fixes both.

You are well placed to measure it here, because the onboard HDC1080 gives you a free reference sitting in the same enclosure:

1. Set scd41_temperature_offset: "0" and let the controller run at a steady temperature for 15 to 30 minutes.
2. Compare the “SCD41 Temperature” reading against the onboard “Temperature”.
3. Set the offset to the difference (SCD41 minus HDC1080).

The offset depends on your enclosure and airflow, so treat 4.0 as a starting guess only.

Pressure and altitude compensation

CO2 accuracy has a small dependence on ambient pressure. At altitude the air is thinner: Vienna sits near 975 hPa rather than sea-level 1013 hPa, a systematic error of a few percent if left uncorrected. Because this is location-specific, the module does not bake in a number. Set your altitude once with scd41_altitude:

files:
  - path: modules/scd41.yaml
    vars:
      scd41_altitude: "170m"     # your install altitude

If you happen to run a barometric sensor on the same bus (a BME680, for instance), you can feed its live pressure to the SCD41 instead of a fixed altitude by extending the sensor with ambient_pressure_compensation_source. That is an advanced option; the fixed altitude is enough for a stationary install.

Configuration variables

Set these under the package’s files: entry with vars: (see the full example below), or as top-level substitutions: in your config.

Variable	Default	Purpose
scd41_name	SCD41	Prefix for the temperature and humidity entities
scd41_id	scd41	Component id prefix. Only a-z 0-9 _. Change it only if you run two instances
scd41_address	0x62	I2C address. Fixed on the SCD4x, no reason to change it
scd41_interval	30s	How often the reading is published
scd41_temperature_offset	4.0	°C subtracted for self-heating. Measure it
scd41_asc	true	Automatic self-calibration. Set false in a closed enclosure
scd41_altitude	0m	Install altitude for pressure compensation

IDs you can override

These are the component ids the module defines. They are the surface you can reach with !extend and !remove from your own config. The prefix follows scd41_id.

ID	Type	Notes
scd41	sensor (scd4x)	The sensor block itself. Target for scd4x.perform_forced_calibration
scd41_co2	sensor	CO2 reading
scd41_temperature	sensor	Temperature reading
scd41_humidity	sensor	Humidity reading

No Web UI group for this module

This module’s 3 named entities do not get their own Web UI group. The module declares them as nested sub-keys of a single platform: scd4x sensor entry rather than as top-level list items each with their own id:, so !extend cannot reach them (the same top-level-only limitation the modules overview already documents). Instead they fall back to ESPHome’s documented default: grouping by entity_category. That works, but it is not per-module grouping.

When you override a nested sensor you must repeat its platform line, but not i2c_id or address. For example, to give the CO2 entity a role name and drop the median filter:

sensor:
  - id: !extend scd41
    co2:
      name: "Server Rack CO2"
      filters: []

New to the module system?

Adding your own entities, changing module variables, and overriding module entities are three different operations. If any of that is unfamiliar, read How modules work once. It applies to every module, not just this one.

Bus and prerequisites

• Requires the hardware package (it provides the shared I2C bus bus_a). This module is not standalone.
• I2C address: 0x62, fixed on the SCD4x. It does not collide with the onboard HDC1080 at 0x40.
• Bus speed: the SCD41 caps the shared bus at 100 kHz. The 50 kHz default is fine. Do not raise the bus above 100 kHz while an SCD41 is attached. See Bus speed and Combining Expansion Modules.
• Power: ~17 mA average at a 5 s measurement rate. Irrelevant on USB, worth a note if you ever budget for battery or PoE.

Full example

A complete, compilable config: the hardware package, the SCD41 with ASC turned off for a closed enclosure and an altitude set, plus the forced-recalibration button.

substitutions:
  wifi_ssid: "YourNetwork"
  wifi_password: "YourPassword"

packages:
  hardware:
    url: https://github.com/zeroflow/wifi-fancontroller
    ref: main
    files: [hardware-rev-3.1.yaml]
  scd41:
    url: https://github.com/zeroflow/wifi-fancontroller
    ref: main
    files:
      - path: modules/scd41.yaml
        vars:
          scd41_asc: "false"       # closed enclosure: calibrate by hand
          scd41_altitude: "170m"

esphome:
  name: my-fancontroller
  friendly_name: My Fan Controller

esp32:
  board: esp32-s2-saola-1
  framework:
    type: arduino

logger:
api:
ota:
  - platform: esphome
wifi:
  ssid: ${wifi_ssid}
  password: ${wifi_password}
  ap:
    ssid: "Fancontroller Fallback"
captive_portal:

# Press this in Home Assistant after the sensor has run 3+ minutes in place.
button:
  - platform: template
    name: "SCD41 Calibrate to 420 ppm"
    entity_category: config
    on_press:
      - scd4x.perform_forced_calibration:
          value: 420
          id: scd41

Troubleshooting

Symptom	Likely cause
CRC errors, “communication failed”, readings drop in and out	Bus is above 100 kHz. Something raised bus_a (often for an OLED). Drop it back to 100 kHz or lower
Sensor missing from the I2C scan log	Cable not seated. The address is fixed at 0x62, so it is not an address clash
CO2 slowly drifts off over weeks	ASC is on but the sensor never sees fresh outdoor air. Set scd41_asc: "false" and run an FRC
CO2 is off by a fixed amount right after setup	Never calibrated in place, or FRC ran before the 3-minute warm-up. Redo the FRC
Temperature reads several °C high	Self-heating. scd41_temperature_offset is still the 4.0 placeholder. Measure it against the onboard sensor
CO2 reads a few percent off at altitude	scd41_altitude still at 0m. Set your real altitude
